GH Series
Horizontal hydrostatic lathes
-
Hydrostatic guiding
Specifications
Hydrostatic guiding system, both longitudinally and transversally, using pump per pocket hydrostatic technology which guarantees unbeatable performance for rigidity, damping, positioning, and durability. The best guiding system for heavy precision machines.
-
-
max machinable
Ø 4 m
Large dimensions throughout

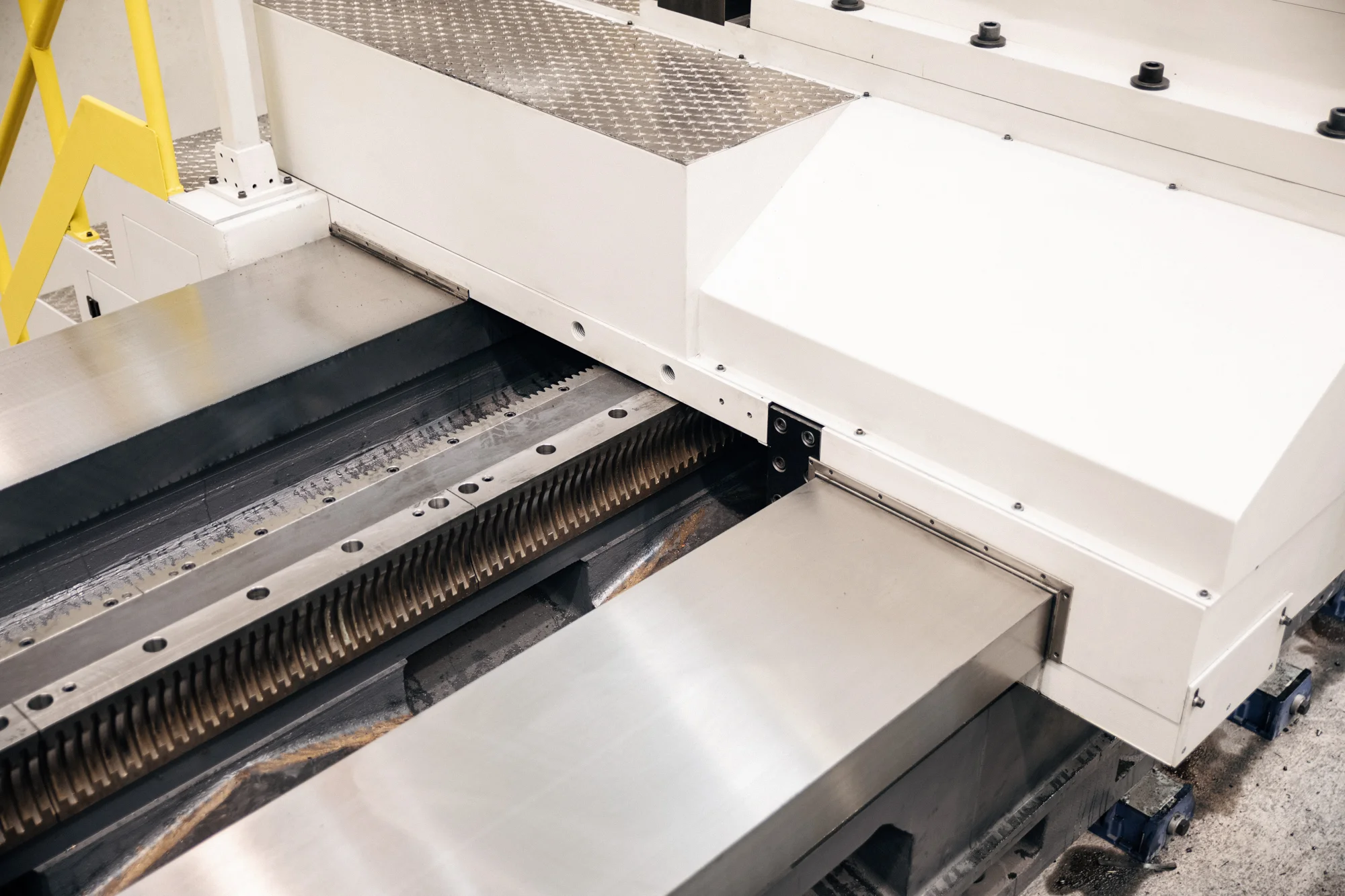

GURUTZPE horizontal flat-bed lathes are based on the best hydrostatic guiding system for carriages, and the most robust, versatile machining column architecture.
These form the basis of a multi-operational machine (turning with blades, milling at 6000 rpm, various grinding operations, and internal machining at a depth of 4 m) with a high degree of autonomy (4.0, ATC and AHC), achieving superior machining precision.
Product range
-
GHH
- Single bed
- X & Y hydrostatic guides
- Size: 30
- Øob ≤ 3.000 mm
- Wbc ≤ 90 t
Horizontal lathes with a single cast-iron architecture and hydrostatic guiding system for remarkable rigidity and performance.
-
GHD
- Double bed
- X & Z hydrostatic guides
- Sizes: 30 | 40
- Øob ≤ 4.000 mm
- Wbc ≤ 200 t
Horizontal lathes featuring a double cast-iron architecture and the same hydrostatic guiding system, ideal for heavy precision machining applications, ensuring unbeatable rigidity, damping, and durability.
