GS Series

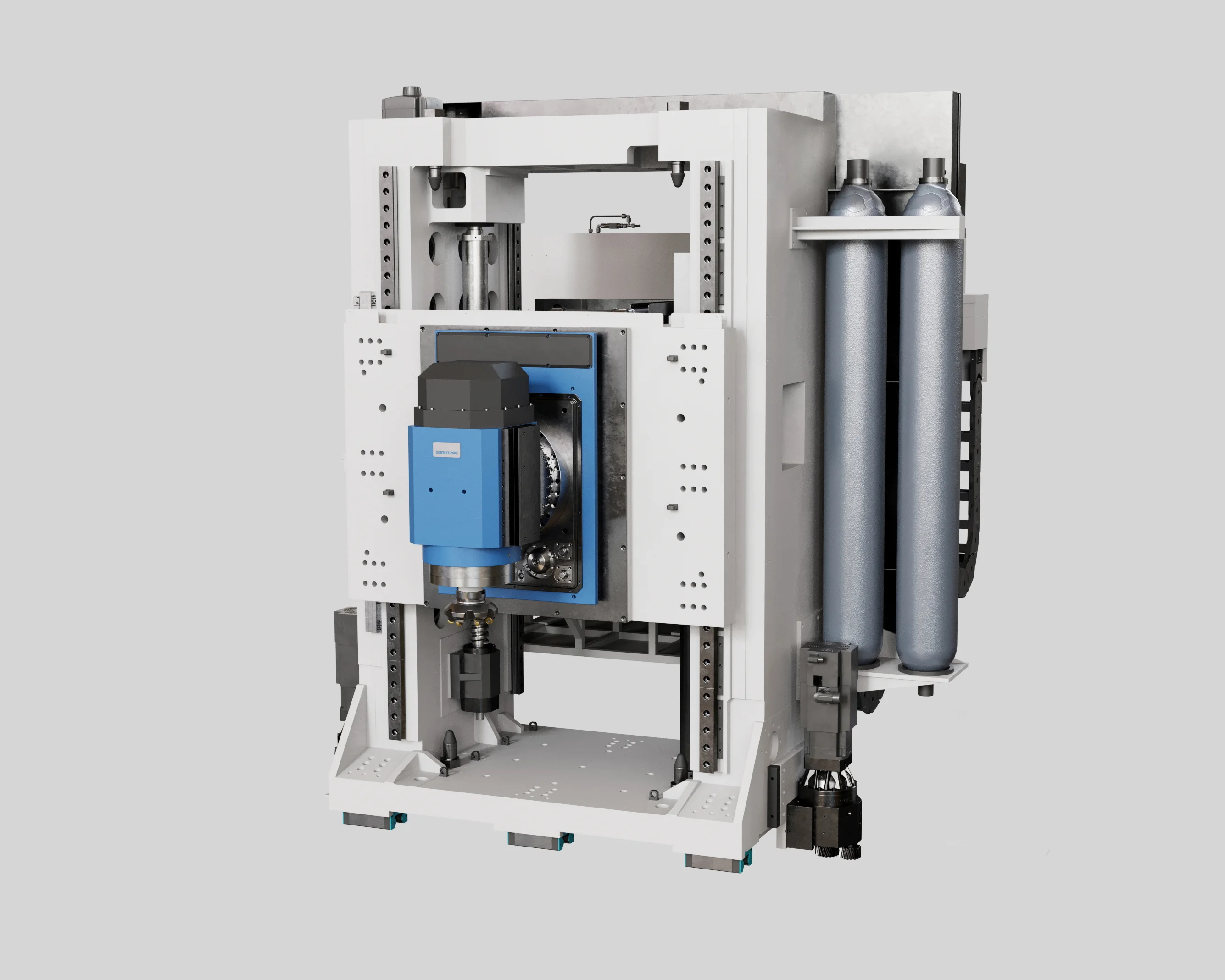

• Symmetric design for optimal thermal and stiffness behavior

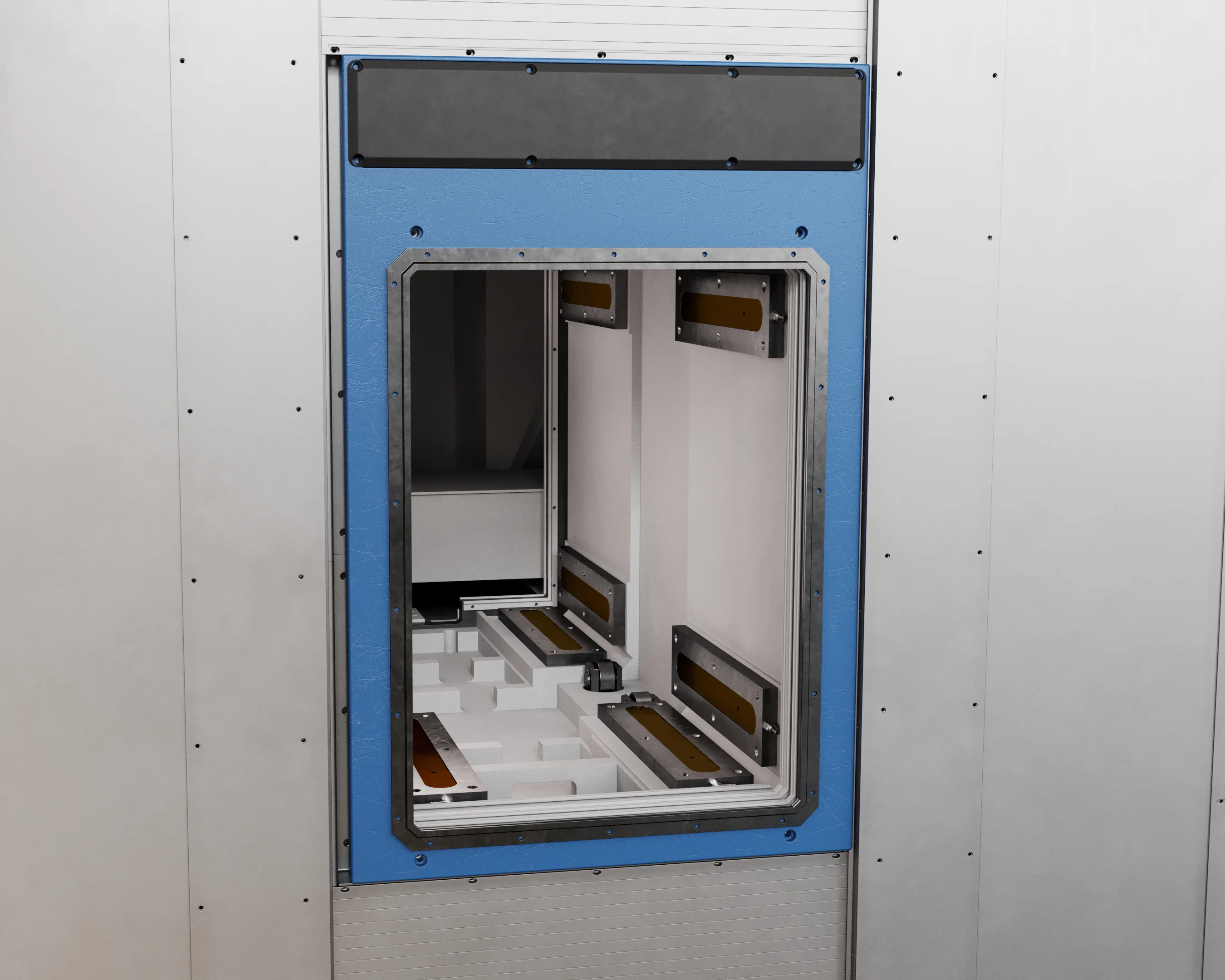

• Hydrostatic Box-in-Box configuration for RAM
• 520 x 460  /  630 X 460 mm hydrostatic guiding of the RAM
• Y axis external brake for heavy turning and drilling operations
• Combined frontal & lateral 4 guides roller system for X axis
• Hydraulic weight compensation for X axis
• Electronic preload with double pinion rack for Z axis
• Compensation for RAM deflection not needed.​​​​​​

• Improved vibration absorption and increased rigidity
• Reduced wear and improved tool insert life
• Better surface finish with Ra values ranging from 0.4 to 0.8
• Longer lifespan compared to other roller guides and ball screws
• Reduced general machine maintenance
• Longer machine lifespan

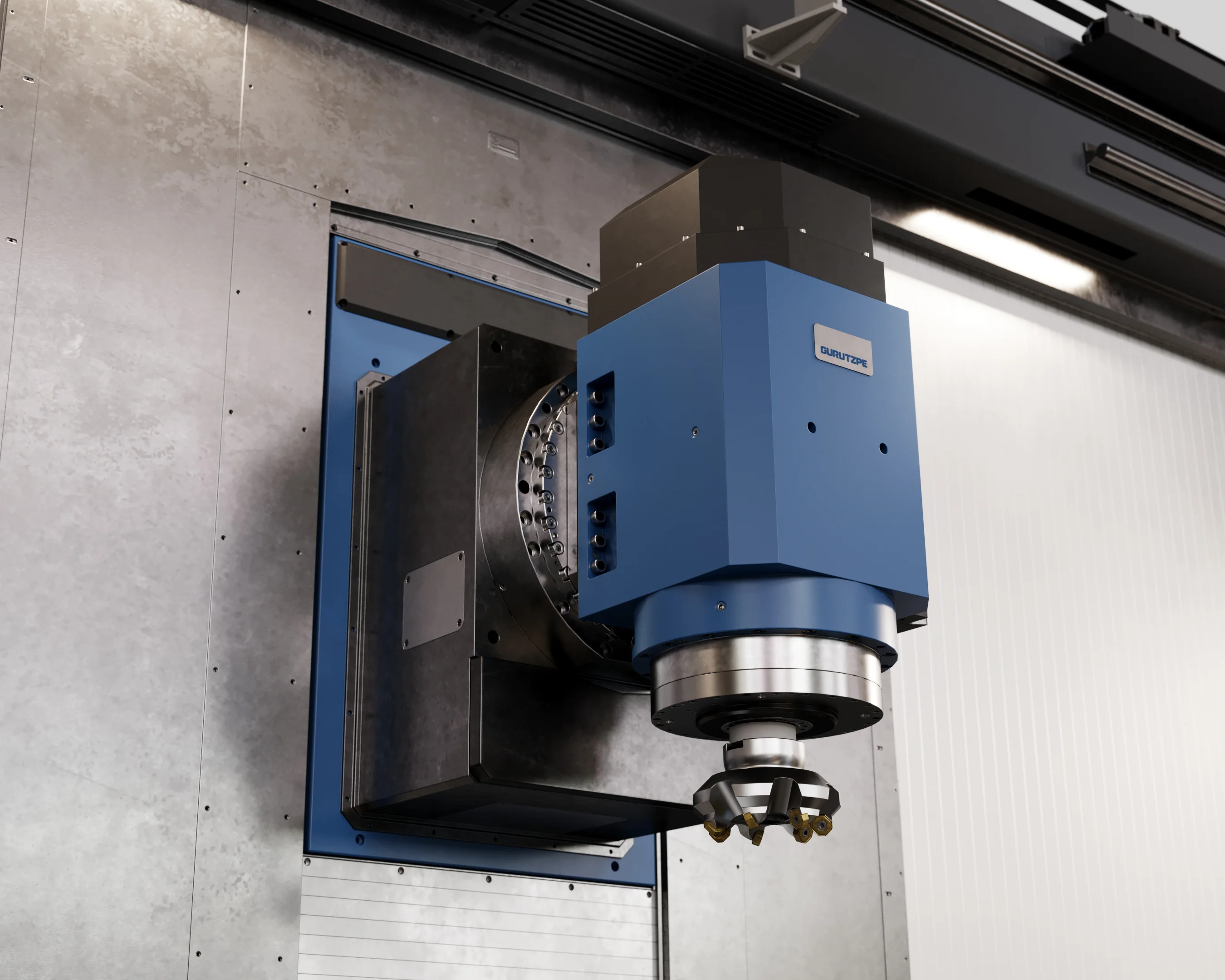

GURUTZPE's multifunction heads are robust and reliable, making them an ideal choice for a wide range of machining applications. Whether you need to perform rough milling on forged parts, turn interrupted surfaces, or handle internal diameters up to 200 mm, these heads deliver precision and power.

With their superior engineering and construction, GURUTZPE's heads are designed to provide long-lasting performance even in demanding operations.

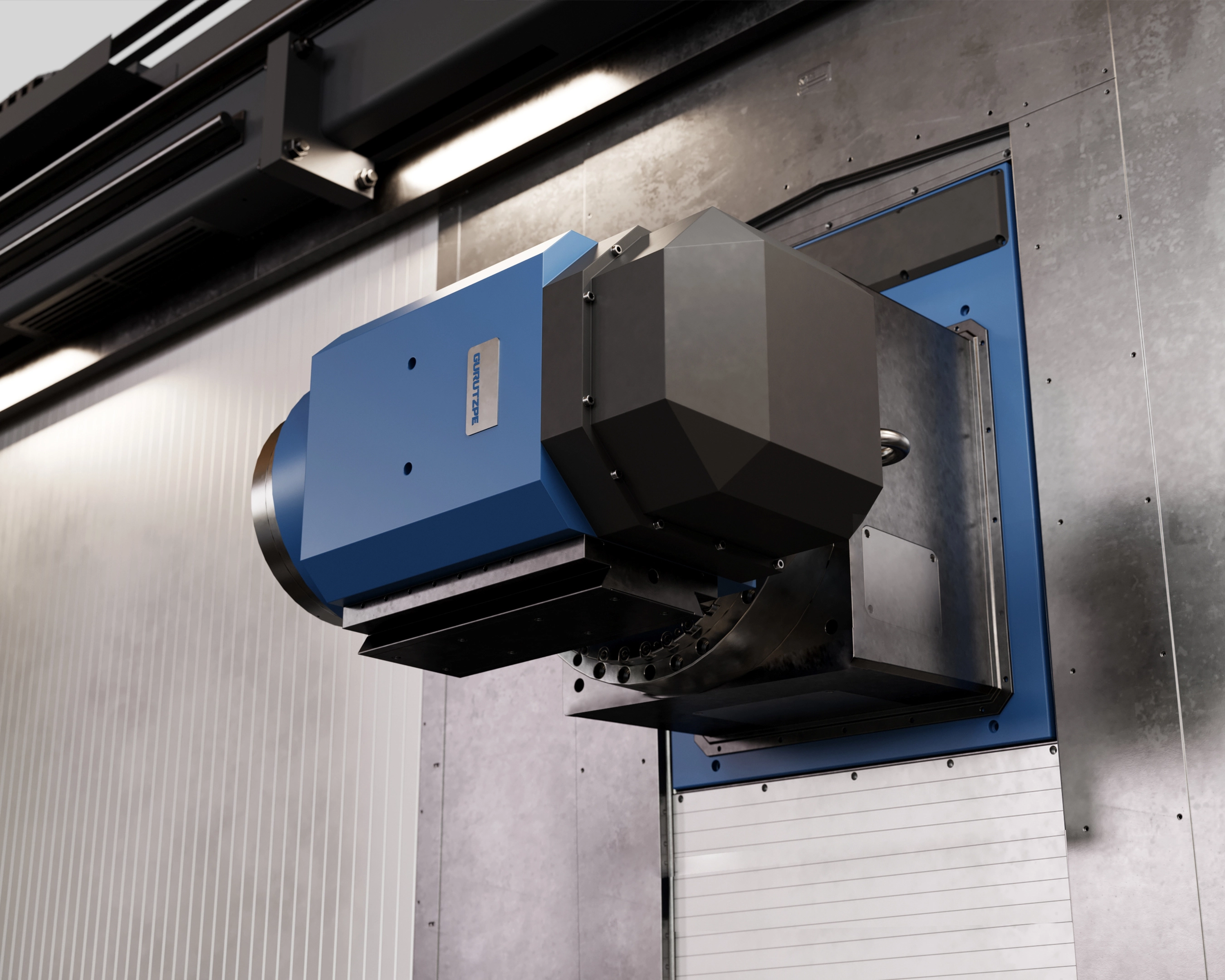

System for the tools and machining accessories that exceed the maximum dimensions of the chain type or robot-based ATC. Thanks to the long and wide prismatic clamping system, long solid/Ejector drills, angular/facing heads and U-axis boring bars can be rigidly fixed to the milling unit. The use of this clamping system opens up the possibility of automatically changing the tools on the angular/facing heads. For the automatic handling of these tools and accessories, a magazine is available above the headstock.

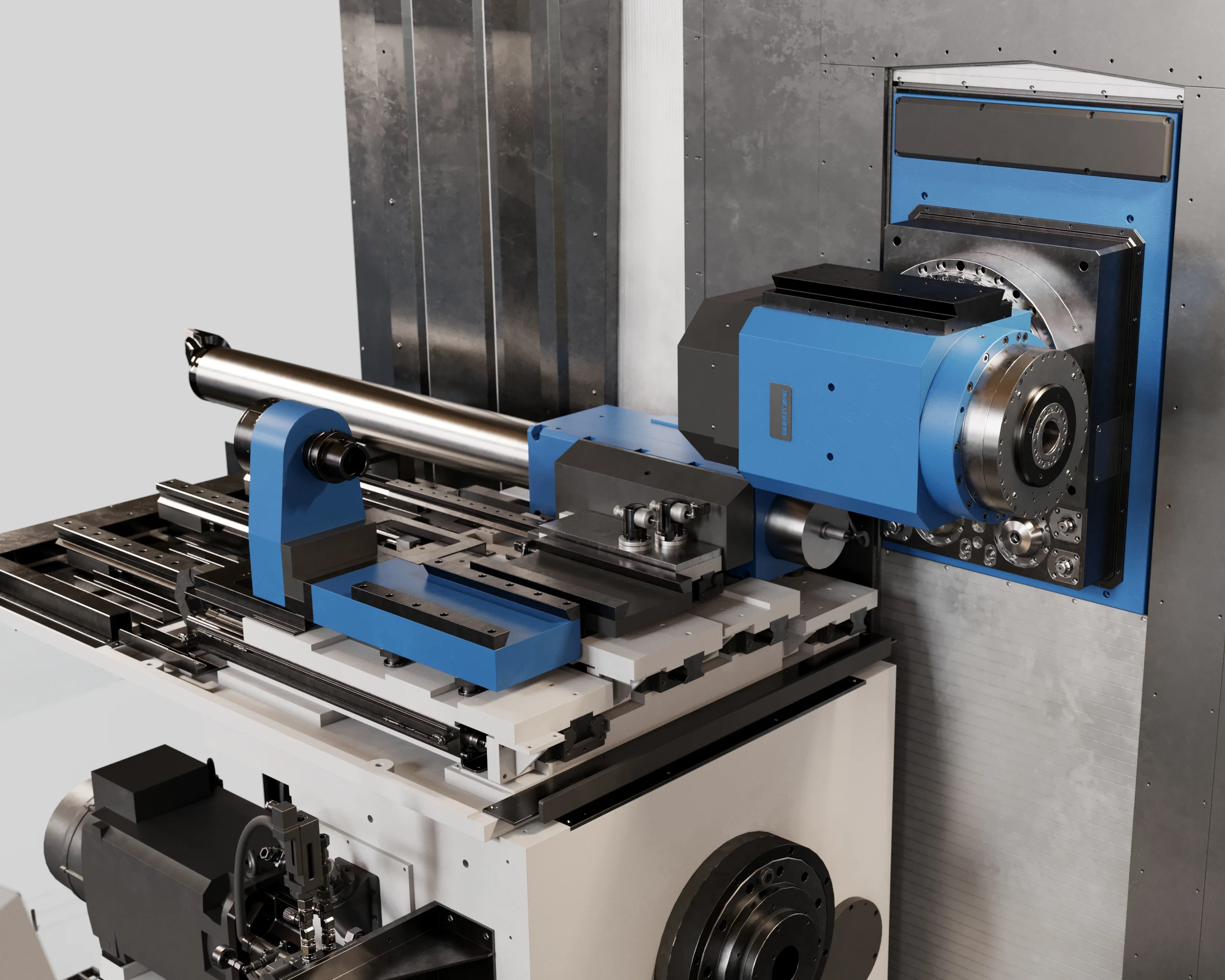

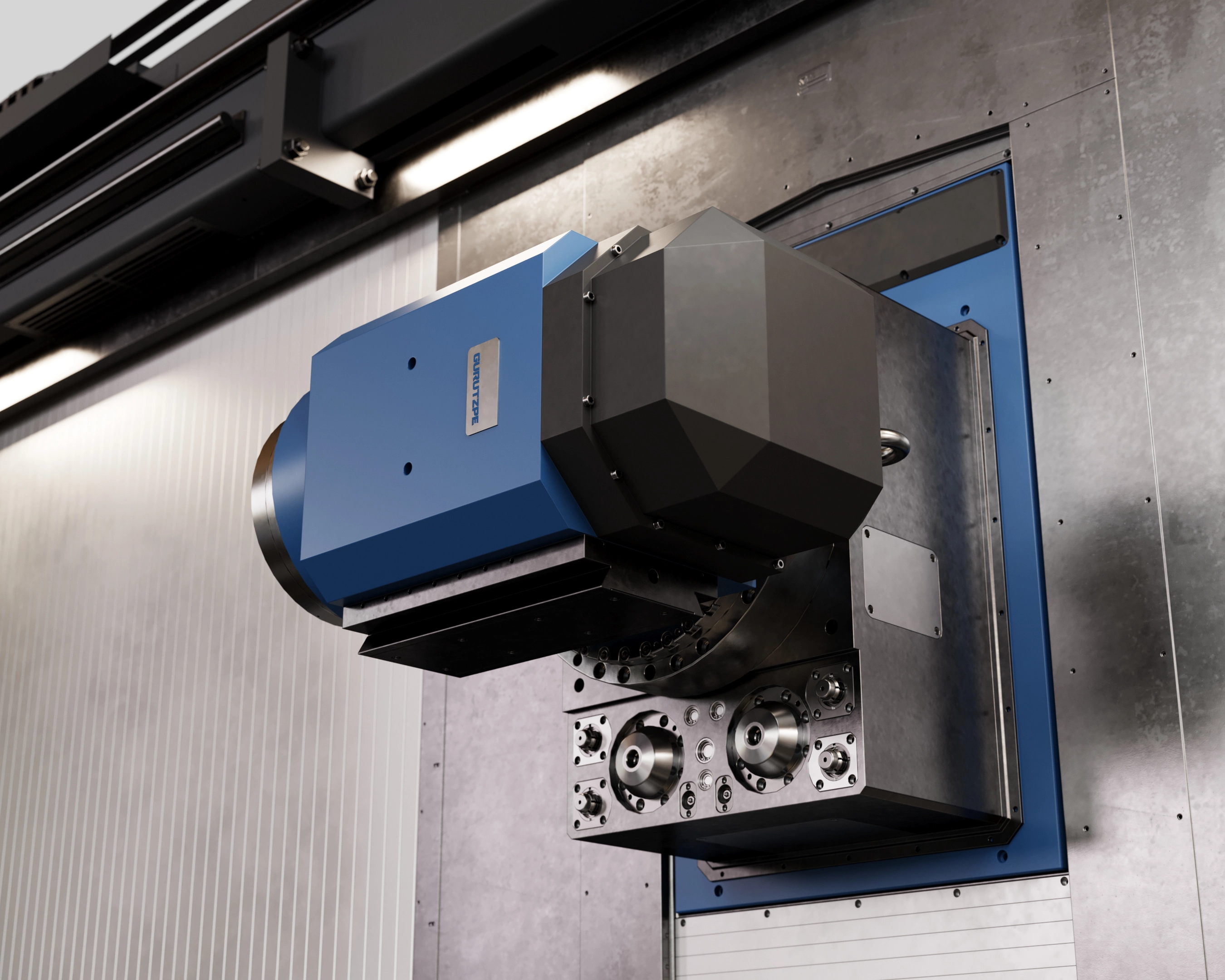

Optional bigger RAM, equipped with automatic docking elements in its bottom section. High force docking elements allow to clamp boring bars up Ø150 mm, 2.100 mm length and 400 kg. B-axis is free of heavy loads, and there is no need for one additional saddle dedicated to the heavy accessories. A magazine is available above the headstock for automatic handling of these stationary heavy boring bars, besides the rotating accessories

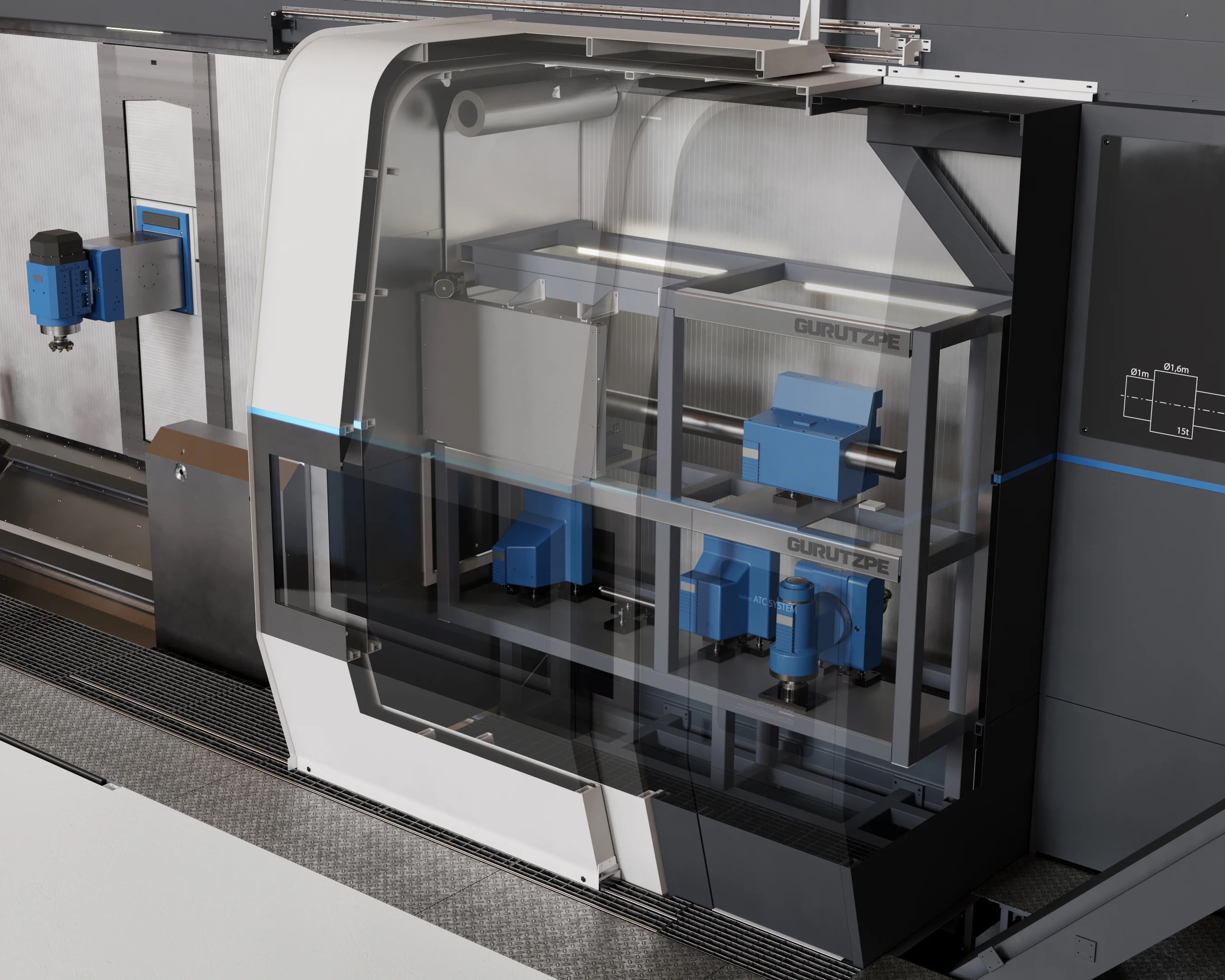

Another optional RAM type for automatic change of heavy-duty machining heads. It is equipped with very high force docking elements in its four corners, which allow boring bars up Ø200 / 2.800 mm length, and machining heads up to 600 kg. For automatic changing of heads, an independent pick-up magazine is available on the tailstock side.

• Powerful heads magazine
• Carrousel type boring bars opt.
• Boring bar up to Ø200

• With independently moving pick-up station per each accessory
• Machine foot-print is not increased, while a changer for heads requires additional floor space for the pick-up
• Simple system with low risk of failure
• 4 configurable rails. Each utility of these rails are defined according to customer needs.

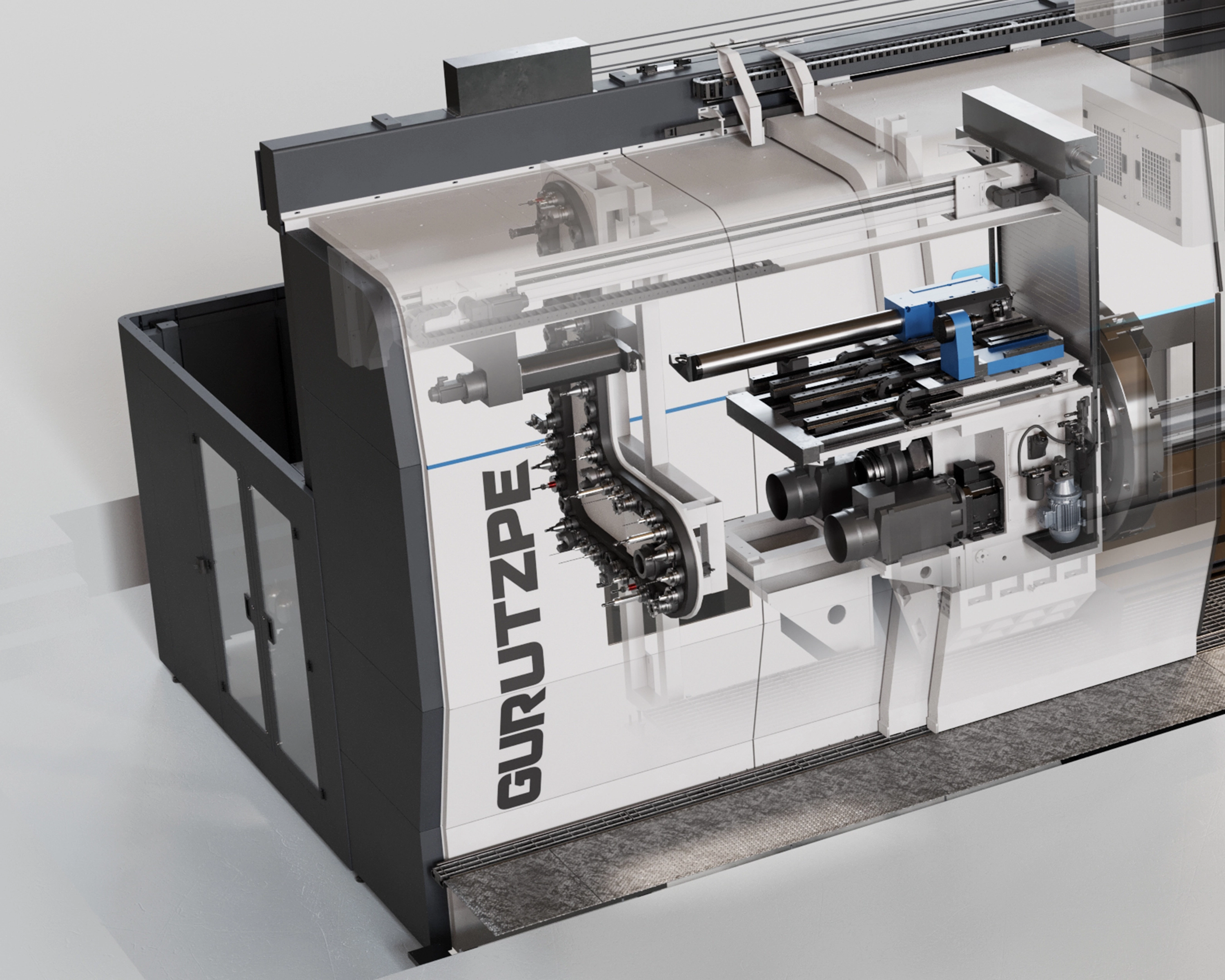

Chain type for horiz tool change, length and weight limited.

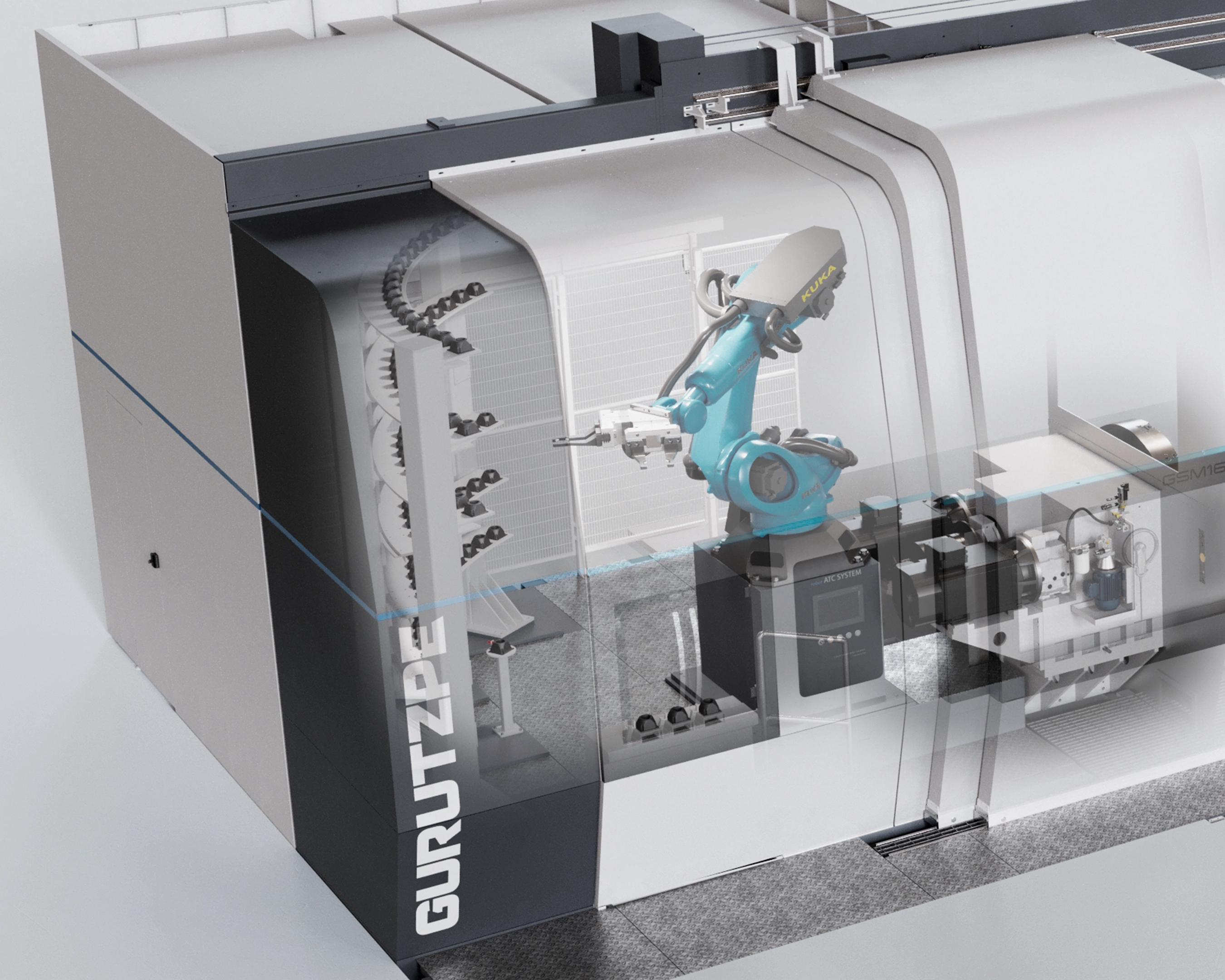

Robot type horiz & vert tool change.

L < 800 mm

W < 35 kg

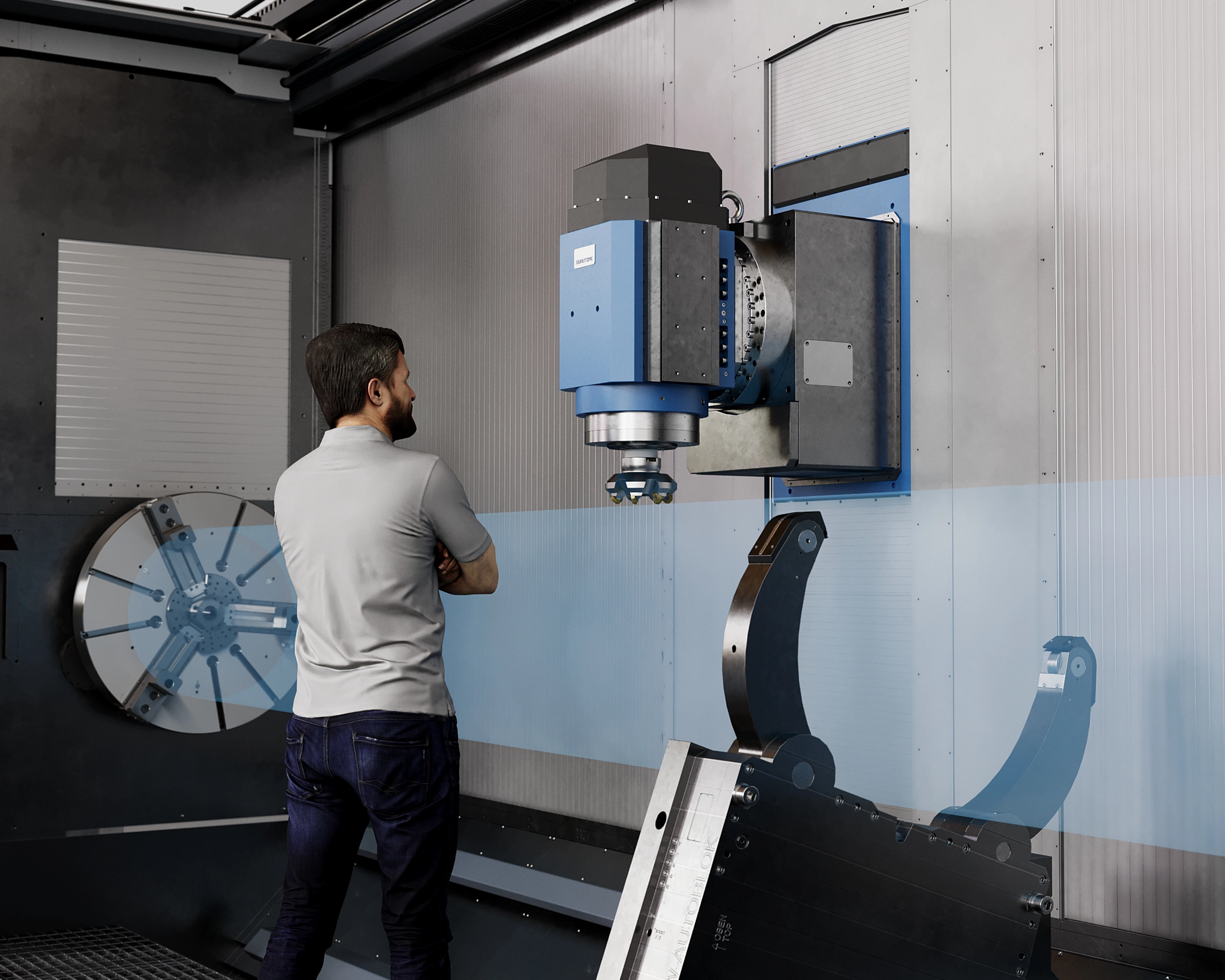

This machine features a flat walking surface for operators and a machining spot at eye level. It provides easy access to the chuck, tailstock, steadies and tools, as well as hands-free chuck control.

Additionally, it offers an excellent view through windows and is fully covered with inox material internally.

This machine has a direct vertical chip fall to the conveyor and a bed without blind pockets, which can be thoroughly cleaned with wipers on the steadies and tailstock. Depending on the chip shape, the platform grid may need to be redesigned.

The machine does not have telescopic backwall guarding, but instead uses aluminum aprons and allows for flushing of the flat surface.

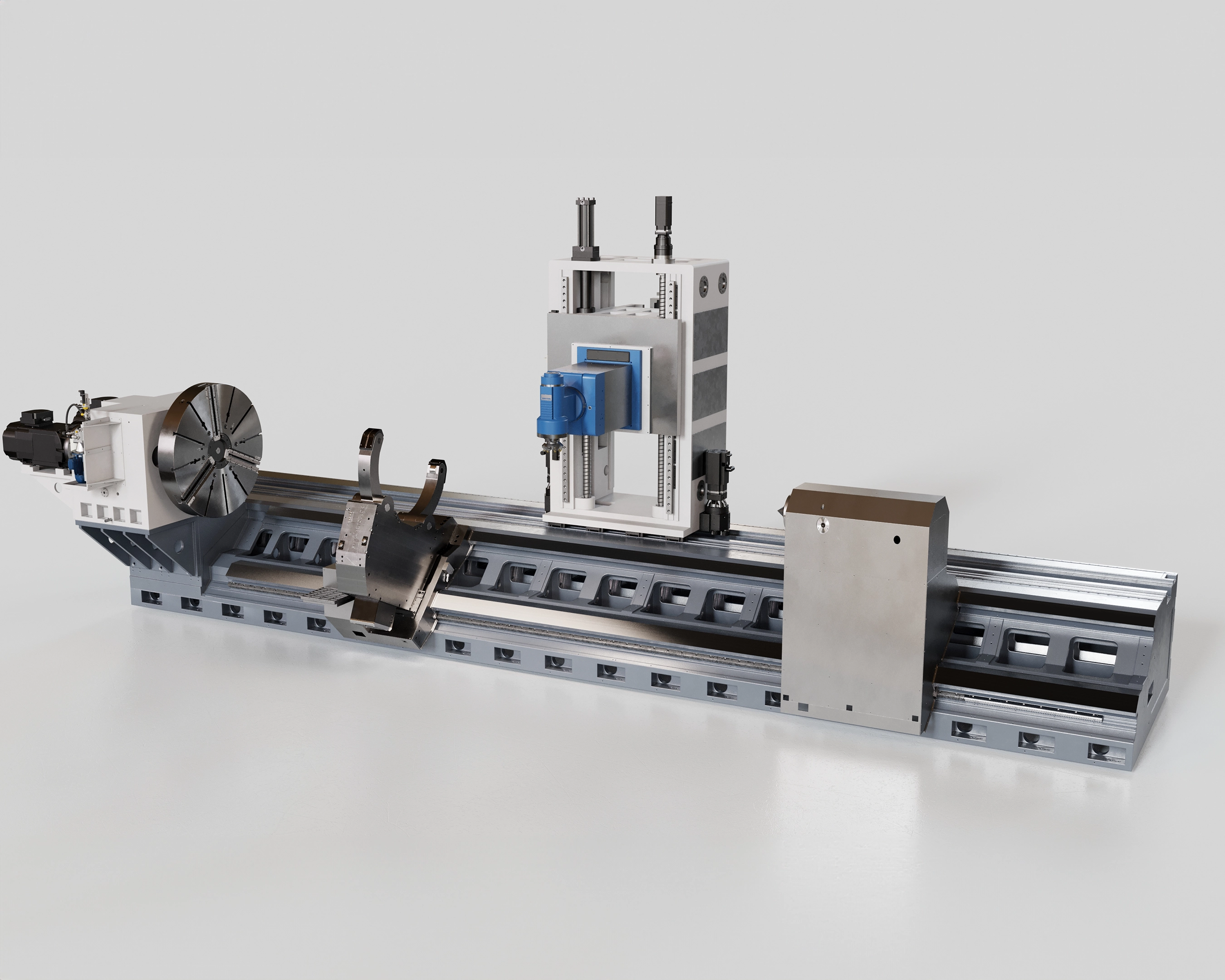

GURUTZPE makes heavy-duty lathes with a sturdy cast iron bed, ground and hardened guides, a backlash-free headstock, and a symmetrical central RAM column. The RAM is hydrostatically damped, and the bed has a 45-degree slant with three fixation lines and ground surfaces for rollers guides.

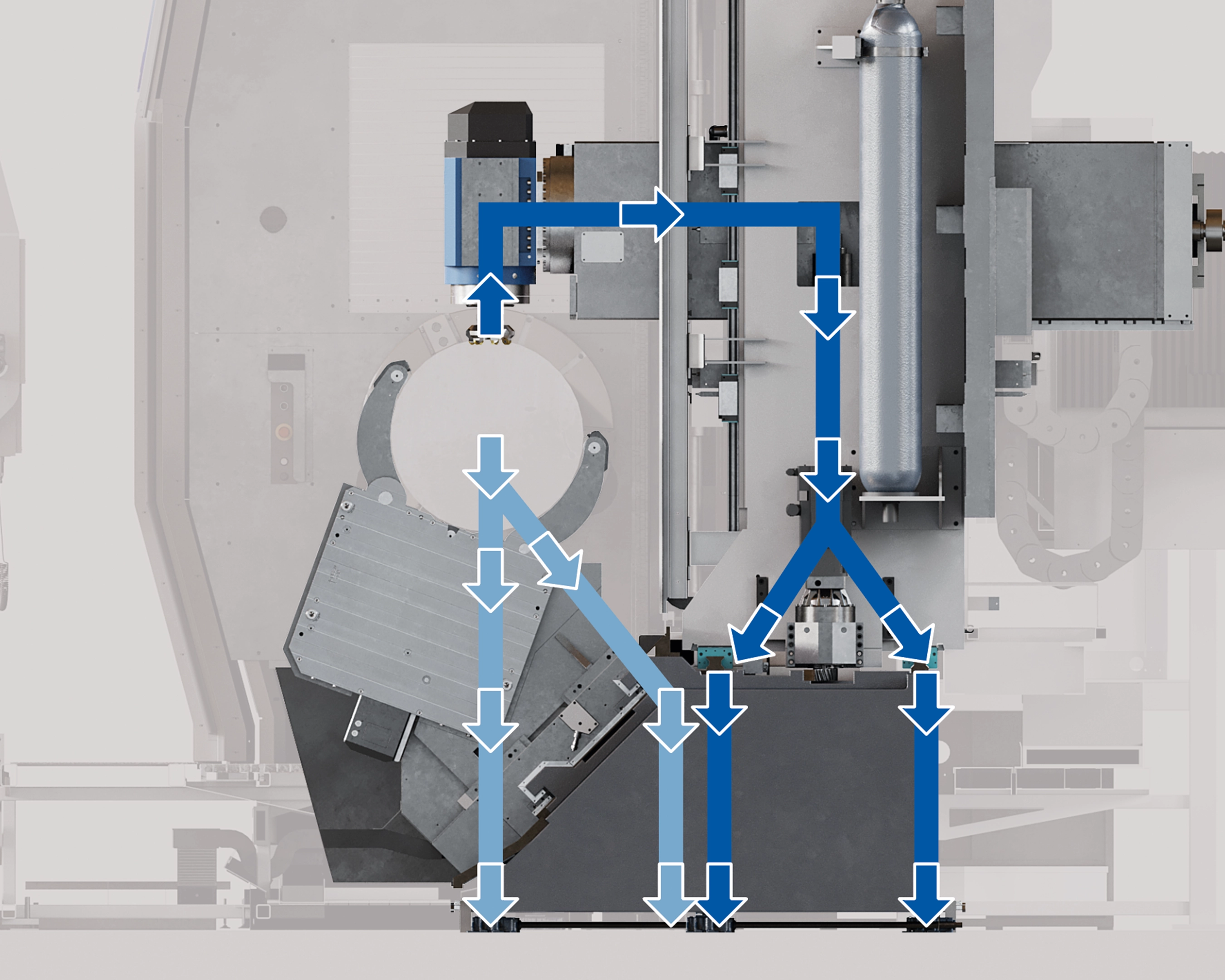

Short and direct flow of cutting forces down to the machine anchoring points, guides thru.

1st guides in the force flow are hydrostatic, which damp most of the vibrations, while roller linear guides on other Multitask lathes hardly damp any.

Part’s weight is fully aligned with the front anchoring points of the machine to the ground, while it is cantilevering on other Multitask lathes.

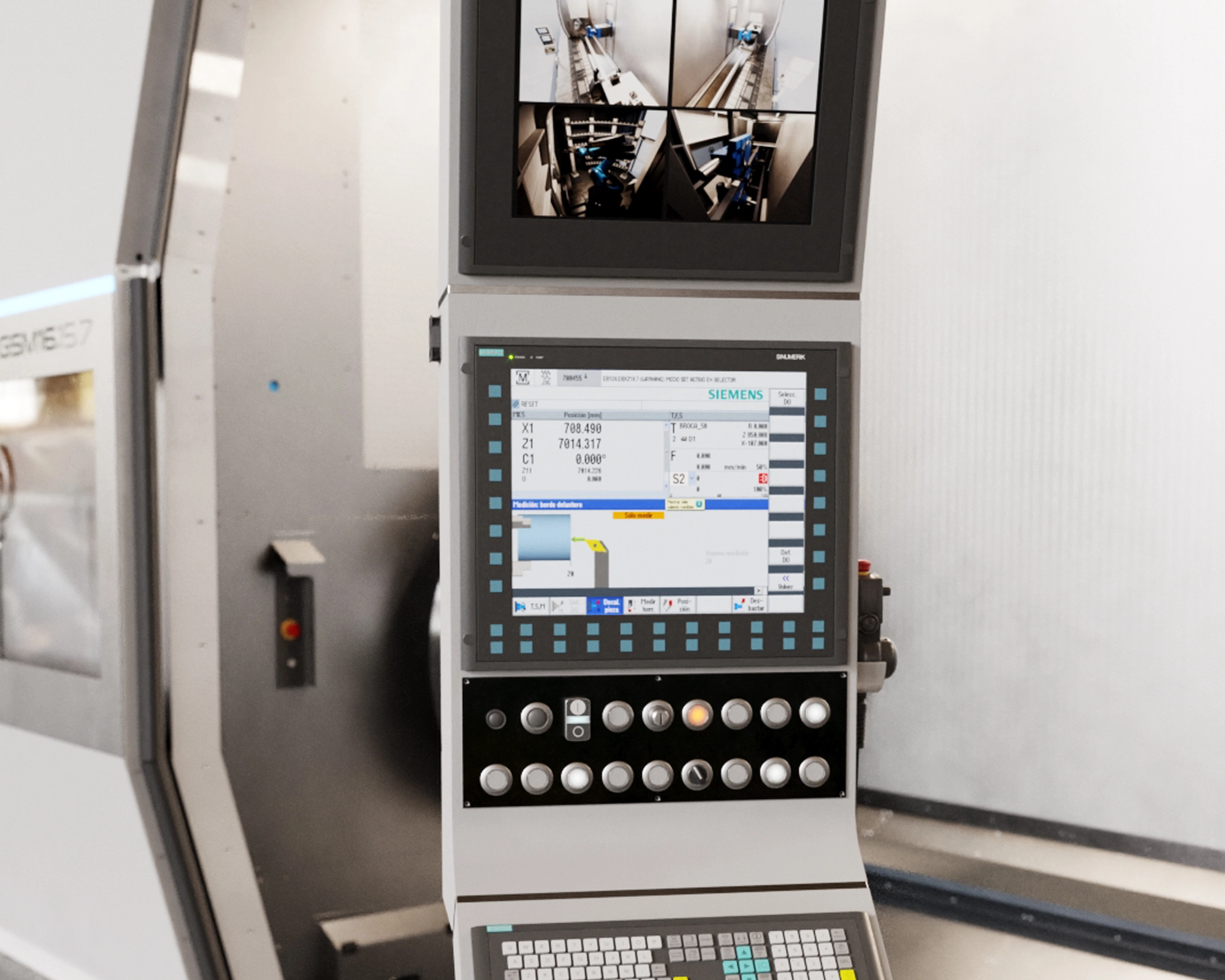

Our SIEMENS 840D control system is user-friendly with pre-built ShopTurn and ShopMill modules for specific cycles. It's ideal for NXCAM systems, and operating it doesn't require a software engineering background. We've also installed cameras in the machining, ATC, and AHC areas for added convenience
