GH Series - Horizontal hydrostatic lathes
Hydrostatic guiding

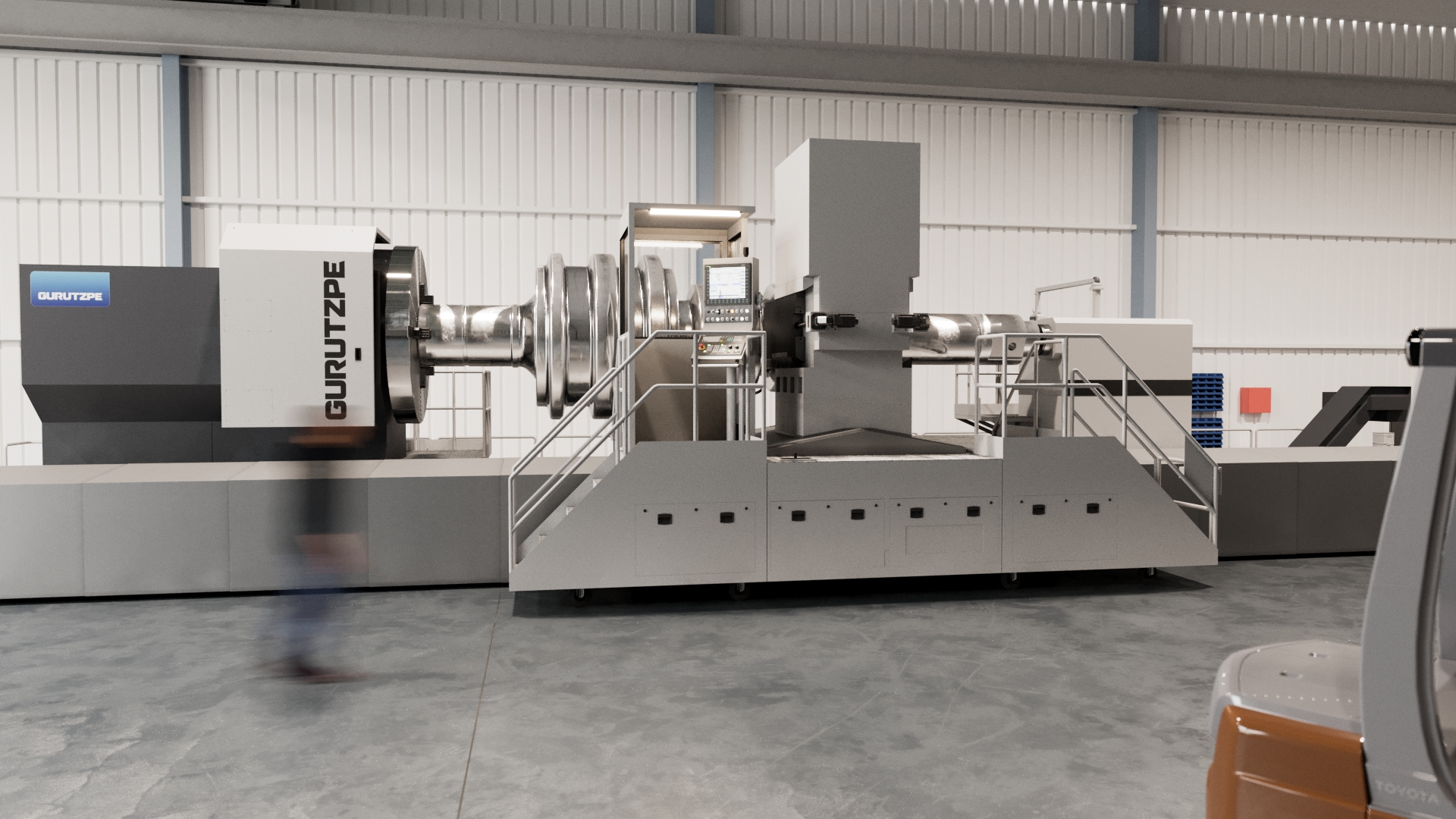

GURUTZPE’s horizontal GHH flat-bed and hydrostatic guided lathes are based on a single cast-iron architecture, hardened, and rectified throughout their length.
It consists of a hydrostatic guiding system, longitudinally and transversally, using “pump per pocket” hydrostatic technology which guarantees unbeatable performance for rigidity, damping, positioning, and durability.
Accesories
| GHH 30 | ||||
|---|---|---|---|---|
| MACHINING AREA | ||||
| Swing over bed | Sob | mm | Ø 3000 | |
| Swing over carriage | Soc | mm | Ø 2500 | |
| Distance between points | Lbc | m | ≤ 25 | |
| HEADSTOCK | ||||
| Motor power S1/S6 | Pm | kW | 113/140 | 113/140 | 142/176 | |
| Motor torque S1/S6 | Tm | kNm | 38,3/47,5 | 65/80 | 81,4/100 | |
| Range of speeds | ns | rpm | 0÷500 | 0÷300 | 0÷250 | |
| TAILSTOCK | ||||
| Part weight e.p. | Wbc | t | 40 | 60 | 90 | |
| GHH 30 | ||||
|---|---|---|---|---|
| MACHINING AREA | ||||
| Swing over bed | Sob | in | Ø 118.11 | |
| Swing over carriage | Soc | in | Ø 98.43 | |
| Distance between points | Lbc | ft | ≤ 82.02 | |
| HEADSTOCK | ||||
| Motor power S1/S6 | Pm | hp | 148.94/183.92 | 148.94/183.92 | 186.64/231.50 | |
| Motor torque S1/S6 | Tm | lbf-ft | 282.71/349.77 | 479.51/590.16 | 601.26/744.73 | |
| Range of speeds | ns | rpm | 0÷500 | 0÷300 | 0÷250 | |
| TAILSTOCK | ||||
| Part weight e.p. | Wbc | lb | 88.18 | 132.28 | 198.41 | |
GURUTZPE solutions allow the user to focus the machine’s functions on specific operational needs, guaranteeing an optimal return on investment. We are always ready to work alongside customers for any special and complex challenge put to us.
In addition to the regular components that make up the machine, GURUTZPE has a wide range of accessories and technologies that enable and facilitate critical machining operations on the part.
